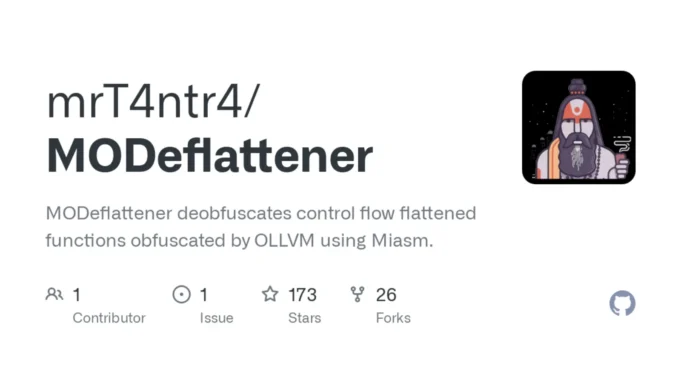

MODeflattener is a specialized tool designed to reverse OLLVM’s control flow flattening obfuscation through static analysis techniques.
Developed using Miasm’s intermediate representation capabilities, it systematically reconstructs the original program logic from obfuscated binaries by analyzing and patching key structural components.
Core Functionality
Control Flow Deobfuscation
The tool identifies two critical components in flattened functions:
- Pre-dispatcher: Located by analyzing block predecessors (the block with maximum incoming edges)1
- Dispatcher: Determined as the first successor of the pre-dispatcher1
These form the “backbone” that coordinates execution through a state variable system. MODeflattener traces this variable’s modifications across basic blocks to map the original control flow.
Technical Process
- State Variable Analysis
Identifies the register/memory location storing the dispatch state, initialized before the dispatcher and modified at each block’s end1. - Relevant Block Classification
- Simple blocks: Unconditional state updates
- Conditional blocks: Use CMOV instructions for state branching1
- SSA-Based Simplification
Applies Miasm’sdo_propagate_expressions
to resolve phi nodes in SSA form, revealing conditional paths: pythonssa_simplifier = IRCFGSimplifierSSA(lifter) ssa = ssa_simplifier.ircfg_to_ssa(ircfg, head)
This exposes branch conditions like0x401a9d: {'cond': 'CMOVB', 'false_next': 0x401bb0, 'true_next': 0x401af5}
1. - Instruction Patching
- Removes state variable operations via def-use chain analysis
- Replaces CMOV with conditional jumps (e.g.,
CMOVB
→JB
) - NOPs out the entire dispatcher backbone1
Operational Workflow
textInput Binary → Identify Dispatcher → Analyze State Var →
Classify Blocks → SSA Simplification → Generate Patches →
Rebuild Control Flow → Output Deobfuscated Binary
Enhanced Features
- Integration with IDA Pro: Includes a nop-hider script to clean graph views
- Automated Detection: Incorporates Tim Blazytko’s heuristics for flattened function identification1
- Call Instruction Fixing: Adjusts relative addresses during patching to maintain functionality
The tool successfully restructures flattened control flow into human-readable graphs while preserving executable logic.
Its open-source implementation on GitHub provides practical utilities for reverse engineers tackling OLLVM-obfuscated malware or protected software1.
